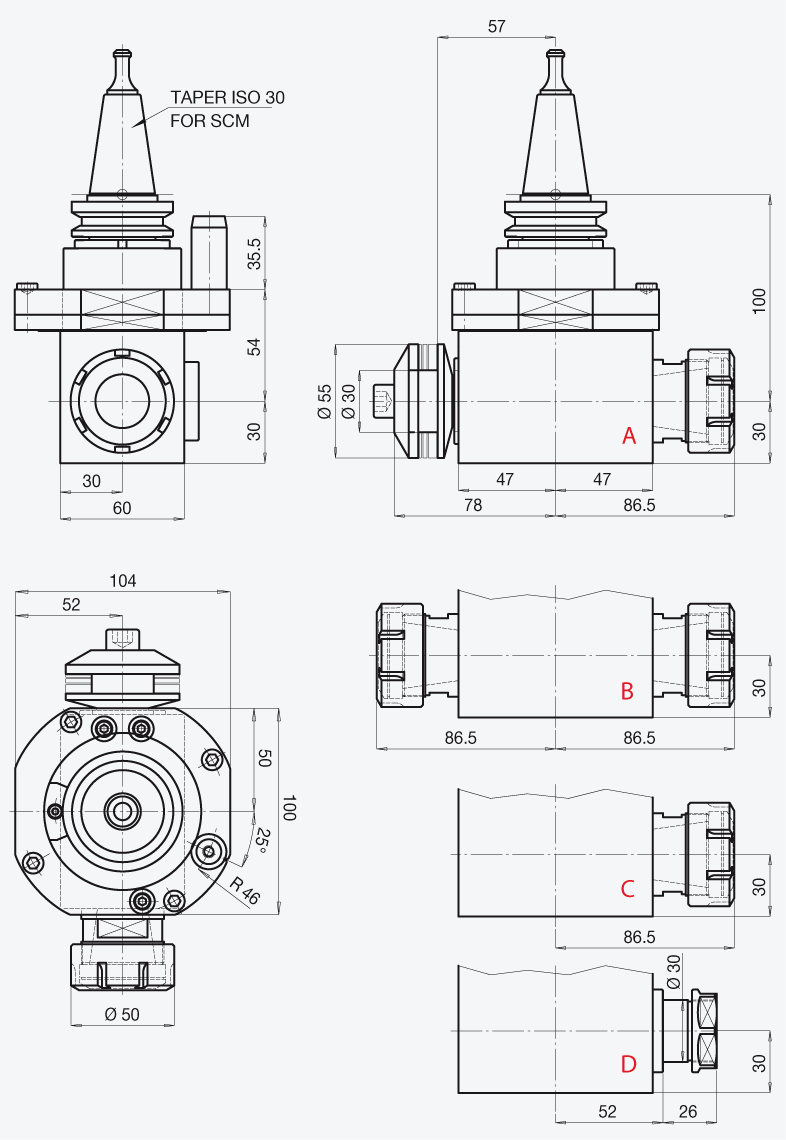

Right Angle Head for SCM Machines With ISO 130

Weight approx 4,5 Kg
Rpm 12000/6000 min-1 max for short time
Max Torque = 10 Nm
Gear Ratio = 1/1

A _ Double outlet version
Collet ER 32 Cap. Ø 2 - Ø20
Mandrel Ø 30 for blade disk max Ø 160
CD 298767432B

B _ Double collet version
Collet ER 32 Cap. Ø 2 - Ø 20
CD 29900

C _ Single collet version
Collet ER 32 Cap. Ø 2 - Ø 20
CD 216900

D _ Single Mandrel
Ø 30 for blade disk max Ø 160
CD 217000
