SLZR series Feature and Technical Data Self-Centering Steady Rests

Print

SLZR

WARNING: the VDI bracket is an option, please to specify the size and type of disk tool holder.

Code Configuration Standard * SLZR 0432 M SLZR 0752 M SLZR 0865 M
With chips protector side - With cylindrial rollers - RZ Id.-Nr. 1685662 685879 685878
With chips protector side - With convex rollers - RB Id.-Nr. 1685663 685877 685876
Without chips protector side - With cylindrical rollers - RZ Id.-Nr. 1685664 685875 685874
Without chips protector side - With convex rollers - RB Id.-Nr. 1685665 685873 685872
Load capacity and Thrust cylinders
Thrust Cylinder diameter 30 32 32
Max pressure bar 35 35 35
Working Pressure bar 8-28 8-28 8-28
Load for each roller with max working pressure - daN 95 95 100
CENTERING TOLERANCE ON THE WHOLE CLAMPING RANGE mm* 0,02 0,02 0,02
REPEATABILITY ON THE SAME Ø AT THE SAME WORKING PRESSURE mm 0,005 0,005 0,005
MAX PERIPHERAL ROLLER SPEED m/min 950 950 950
Weight - kg 2,1 3,5 3,5
* With constant pressure and load

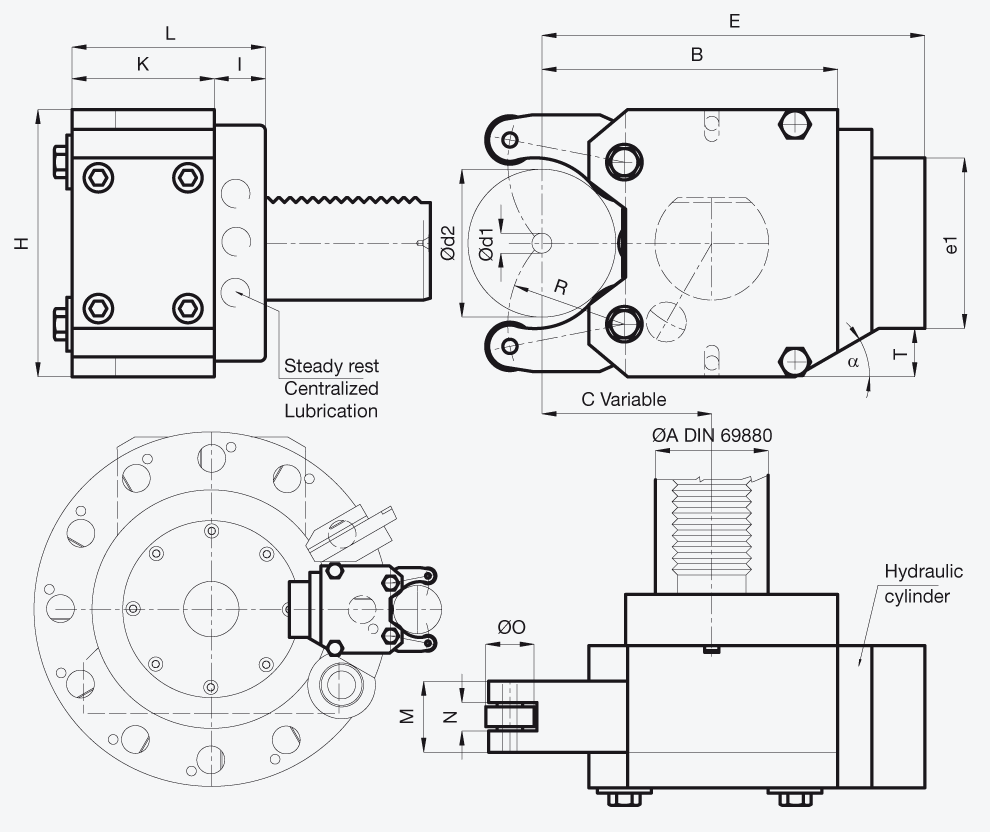

Type SLZR 0432 M SLZR 0752 M SLZR 0865 M
d1 4 7 8
d2 32 52 65
0A 20-30-40-50 30-40-50 30-40-50
B 86 104 112
E 117 138 146
H 80 94 105
I 18 23 23
K 36 50 50
R 32 40 48
L 54 73 73
M 15 25 25
N 9 12 12
O 19 19 19
T / / 23
e1 54 60 60
alfa / / 30°
Central. Lub.
 on plate
 on stady rest
 on stady rest
