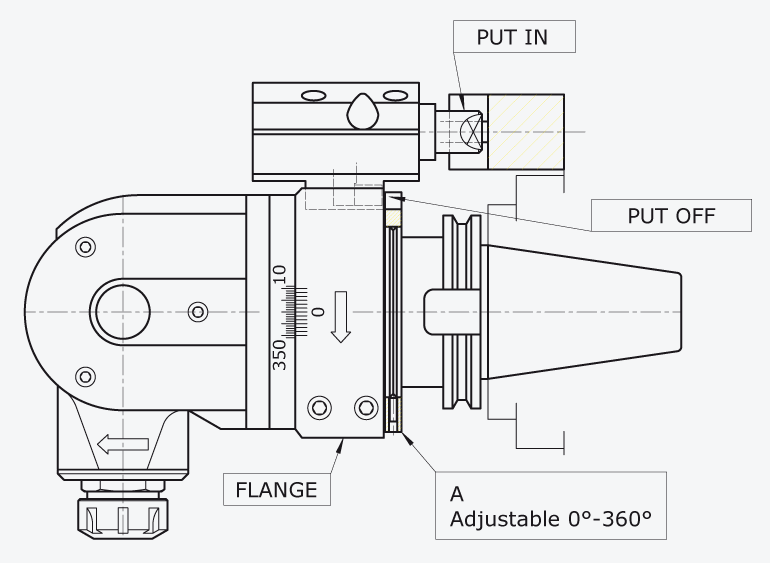

Working Phase
Every heads can be fit for machining centre, so they can be automatically loaded from tool store to mandrel and vice-versa. "A" ring and flange are adjustable from 0 to 350, so they allow an easy positioning, independently of the position of stopblock.
A lot of machining centre are already equipped with Stopblock, in this situation the positioning pin will be manufactured according to the existing stopblock.
When the head is in loading phase a leverage system prevents the rotation between the cone and the head's body.

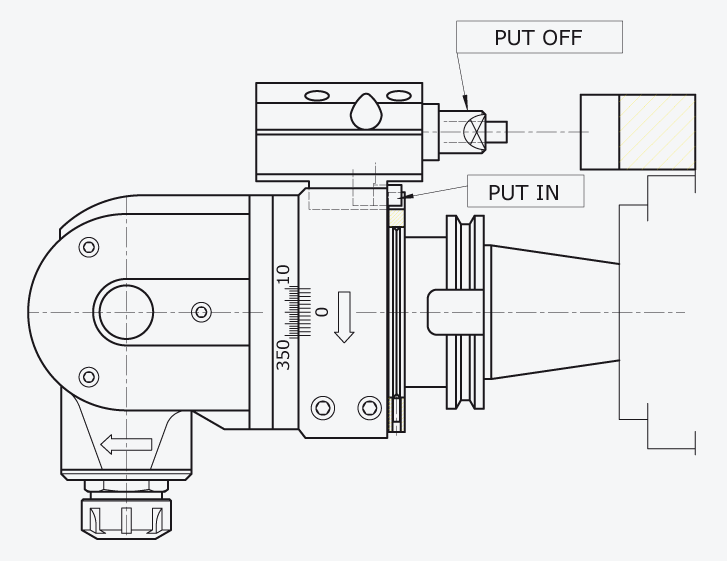

Loading Phase
