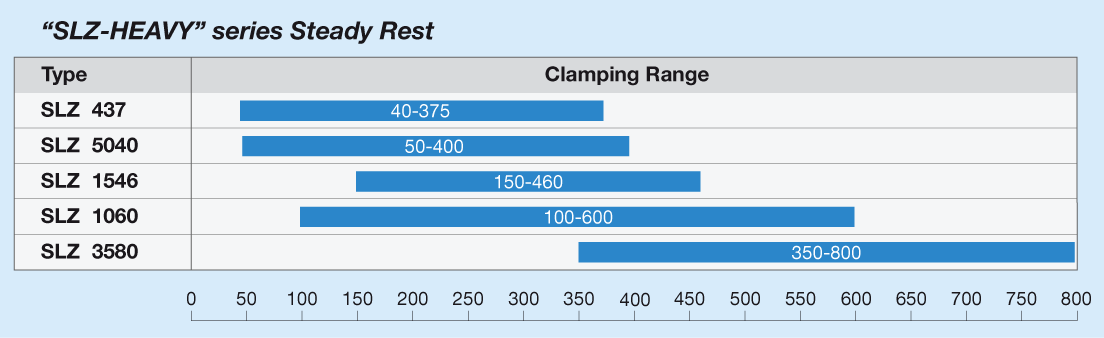

Clamping Range |
SLZ 437 |
SLZ 5040 | SLZ 1546 | SLZ 1060 | SLZ 3580 |
Clamping range max Ø -without chip protectors- | 40-375 | 50-400 | 150-460 | 100-600 | 350-800 |
Clamping range max Ø -with chip protectors- | 75-350 | 75-380 | 150-430 | 100-590 | 350-770 |
Code Configuration Standard * | |||||
With side chips protector - With cylindrical rollers - RZ Id.-Nr. | 685899 | 685898 | 685897 | 685896 | 685895 |
With side chips protector - With convex rollers - RB Id.-Nr. | 685894 | 685893 | 685892 | 685891 | 685890 |
Without side chips protector - With cylindrical rollers - RZ Id.-Nr. | 685889 | 685888 | 685887 | 685886 | 685885 |
Without side chips protector - With convex rollers - RB Id.-Nr. | 685884 | 685883 | 685882 | 685881 | 685880 |
Load Capacity and Thrust Cylinder Dimension | |||||
Thrust Cylinder diameter | C120 | C120 | C120 | C150 | C200 |
Thrust Cylinder surface cm2 | 113 | 113 | 113 | 176 | 314 |
Max pressure bar | 100 | 100 | 110 | 90 | 80 |
Working Pressure bar | 10-40 | 10-50 | 10-50 | 10-60 | 10-50 |
Load for each roller with max working pressure - daN | 1500 | 1800 | 1800 | 3500 | 5200 |
Max load allowed for each roller - daN | 3500 | 3700 | 4000 | 5000 | 8300 |
Centering Tolerance on the whole clamping range * - mm | 0,04 | 0,04 | 0,04 | 0,04 | 0,06 |
REPEATABILITY ON THE SAME Ø AT THE SAME WORKING PRESSURE mm | 0,01 | 0,01 | 0,01 | 0,01 | 0,01 |
MAX PERIPHERAL ROLLER SPEED m/min | 725 | 725 | 725 | 725 | 715 |
Max peripheral roller speed at 50% of max load for each roller m/min |
875 | 875 | 875 | 875 | 860 |
Workpiece center movement in relation to 20% - 70% changing of max working pressure (at constant load) mm. Patented Device - on request - |
0,06 | 0,06 | 0,06 | 0,06 | 0,06 |
* With constant pressure and load |
