| Cylindrical rollers
|
Steady rest
Type
|
A
|
B
|
ØF
|
ØO
|
ØE
|
R
|
Item
|
| SLZ 047
|
20
|
11,5
|
6
|
19
|
6
|
500
|
490004
|
| SLZN 067
|
28
|
17,5
|
8
|
24
|
9
|
500
|
4129404
|
| SLZN 08105
|
35
|
20,5
|
12
|
35
|
15
|
500
|
4126304
|
| SLZN 1152
|
48
|
30
|
20
|
47
|
21
|
1000
|
4980004
|
| SLZN 1517
|
48
|
30
|
20
|
47
|
21
|
1000
|
4980004
|
| SLVN 40200
|
48
|
30
|
20
|
47
|
21
|
1000
|
4980004
|
| SLZN 325
|
60
|
40
|
20
|
52
|
21
|
3000
|
4870004
|
| SLZN 50315
|
75
|
45
|
20,1
|
60
|
21
|
3000
|
4600040
|
| SLZN 85350
|
75
|
45
|
20,1
|
60
|
21
|
3000
|
4600040
|
|
|
|
| Convex rollers
|
Steady rest
Type
|
A
|
B
|
ØF
|
ØO
|
ØE
|
R
|
Item
|
| SLZ 047
|
20
|
11,5
|
6
|
19
|
6
|
500
|
490004
|
| SLZN 067
|
28
|
17,5
|
8
|
24
|
9
|
100
|
4129416
|
| SLZN 08105
|
35
|
20,5
|
12
|
35
|
15
|
100
|
4126316
|
| SLZN 1152
|
48
|
30
|
20
|
47
|
21
|
100
|
4980016
|
| SLZN 1517
|
48
|
30
|
20
|
47
|
21
|
100
|
4980016
|
| SLZN 40200
|
48
|
30
|
20
|
47
|
21
|
100
|
4980016
|
| SLZN 325
|
60
|
40
|
20
|
52
|
21
|
100
|
4870016
|
| SLZN 50315
|
75
|
45
|
20,1
|
60
|
21
|
500
|
4970016
|
| SLZN 85350
|
75
|
45
|
20,1
|
60
|
21
|
500
|
4970016
|
|
|
|
Assembling and disassembling rollers
Remove the screw 1, loose the screw 2, remove the pin 3, remove the chips guard 4 with the roller 5. When you are removing the pin, pay attention at the the small rollers 6 that are around the pin. When assembling the roller the pin's lubrication hole must concur with the hole in the arm. After changing the rollers check that the oil coming out from the rollers.
You have to change the roller only as a set, so you can mantain the centering precision. |
|
|
|
|

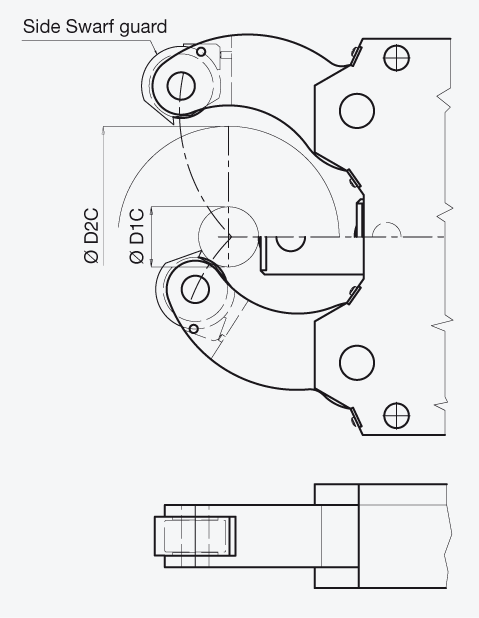

Chips guard
The chips guard is mounted to avoid that chips are laminated between rollers and workpiece.
The chips guard automatically adjust its scraper edge according to the clamping diameter.
THE STEADY REST DOESN'T HAVE TO CLAMP A DIAMETER SMALLER THAN "D1C" (you can damage the chips guard). |
|
Steady rest
Type
|
Central chips guard
for plane rollers
Item
|
Side
chip guard
Item
|
Capacity
|
| D1C
|
D2C
|
| SLZ 047
|
04662006
|
490006
|
Ø 15
|
Ø 62
|
| SLZN 067
|
041294007
|
4129406
|
Ø 11
|
Ø 70
|
| SLZN 08105
|
041263006
|
457206
|
Ø 16
|
Ø 101
|
| SLZN 1152
|
04681006
|
4980006
|
Ø 20
|
Ø 140
|
| SLZN 1517
|
04387006
|
4980006
|
Ø 25
|
Ø 158
|
| SLZN 40200
|
04387006
|
4980006
|
Ø 40
|
Ø 195
|
| SLZN 325
|
04870030
|
4870006
|
Ø 40
|
Ø 240
|
| SLZN 50315
|
04628006
|
4970006
|
Ø 50
|
Ø 305
|
| SLZN 85350
|
04628006
|
4970006
|
Ø 85
|
Ø 345
|
|
